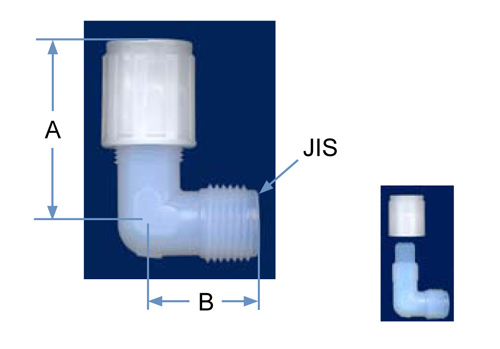

| PFA Part No. | Tube O.D. | JIS Size | Orifice | A | B |
| ME4-4JN-1 | 1/4 | 1/4 | .15 | 1.65 | 1.07 |
| ME4-6JN-1 | 1/4 | 3/8 | .15 | 1.65 | 1.07 |
| ME6-4JN-1 | 3/8 | 1/4 | .25 | 1.76 | 1.07 |
| ME6-6JN-1 | 3/8 | 3/8 | .25 | 1.76 | 1.07 |
| ME6-8JN-1 | 3/8 | 1/2 | .25 | 1.76 | 1.18 |
| ME8-4JN-1 | 1/2 | 1/4 | .25 | 1.86 | 1.07 |
| ME8-6JN-1 | 1/2 | 3/8 | .38 | 1.86 | 1.07 |
| ME8-8JN-1 | 1/2 | 1/2 | .38 | 1.86 | 1.18 |
| ME8-12JN-1 | 1/2 | 3/4 | .38 | 1.86 | 1.36 |
| ME12-8JN-1 | 3/4 | 1/2 | .53 | 2.18 | 1.37 |
| ME12-12JN-1 | 3/4 | 3/4 | .63 | 2.18 | 1.37 |
| ME12-16JN-1 | 3/4 | 1 | .63 | 2.18 | 1.80 |
| ME16-12JN-1 | 1 | 3/4 | .66 | 2.70 | 1.64 |
| ME16-16JN-1 | 1 | 1 | .87 | 2.70 | 1.80 |
