| 型號 | 尺寸 | 規格 | 材質 | 墊座 | 接口 |
| VP-200 | 1/2"~2" | ANSI | PVC | NR | Socket, Threaded |
| VP-201 | 1/2"~2" | ANSI | CPVC | NR | Socket, Threaded |

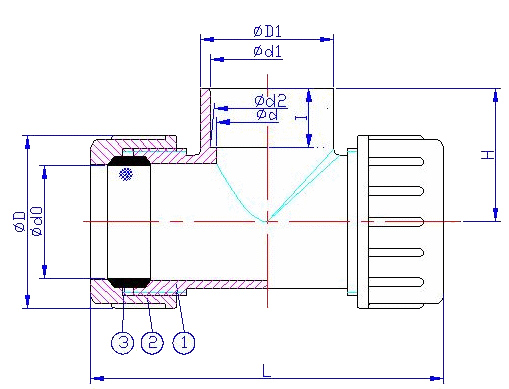

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC | 1 |
| 2 | 螺帽(UNION NUT) | UPVC,CPVC | 2 |
| 3 | 墊圈(SEAT) | NR | 2 |
| SIZE Nom | 1/2" (15mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 1-1/2" (40mm) | 2" (50mm) |
| ?D | 47 | 52 | 61 | 72 | 80 | 92 |
| ?D1 | 30 | 36 | 43 | 51 | 58 | 71 |
| ?d | 16.5 | 20.5 | 28 | 35 | 42.5 | 54 |
| ?d0 | 21 | 26.47 | 33.2 | 42 | 48 | 60.1 |
| ?d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 |
| ?d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 |
| L | 127 | 132 | 143.5 | 159 | 171.5 | 189 |
| H | 36.5 | 44.5 | 55 | 61 | 68.5 | 71 |
| I | 22.22 | 26 | 31.6 | 34.7 | 37.9 | 31.3 |
| NPT thd./in. | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 |
