型號 |
尺寸 |
規格 |
材質 |
墊座 |
O環 |
蝶片 |
接口 |
|
VP-810 |
2"~8" |
ANSI, JIS, DIN |
PVC |
EPDM, FPM |
EPDM, FPM |
PP |
Flanged |
|
VP-811 |
2"~8" |
ANSI, JIS, DIN |
CPVC |
EPDM, FPM |
EPDM, FPM |
CPVC |
Flanged |
|
VP-813 |
2"~8" |
ANSI, JIS, DIN |
PVDF |
EPDM, FPM |
EPDM, FPM |
PVDF |
Flanged |
|
VP-814 |
2"~8" |
ANSI, JIS, DIN |
PP |
EPDM, FPM |
EPDM, FPM |
PP |
Flanged |
|

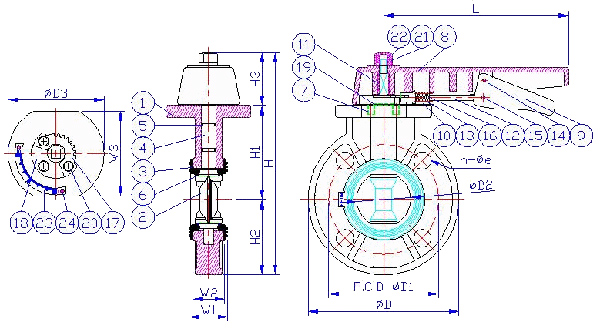

NO. |
PART |
MATERIAL |
Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 |
| 2 | 閥門(DISC) | UPVC,CPVC,PP,PVDF | 1 |
| 3 | 墊座(SEAT SEAL) | EPDM,FPM | 1 |
| 4 | 中心柱(STEM) | SUS 410 | 1 |
| 5 | O環(STEM O-RING) | EPDM,FPM | 2 |
| 6 | O環(DISC O-RING) | EPDM,FPM | 2 |
| 7 | 埋入銅柱(INSERT NUT 2"~6") | C3604 | 3 |
| 8 | 大把手(LARGE HANDLE) | PP | 1 |
| 9 | 小把手(SMALL HANDLE) | PP | 1 |
| 10 | 把手蓋(SPRING LOCK) | PP | 1 |
| 11 | 埋入銅柱(HANDLE INSERT) | STAINLESS STEEL | 1 |
| 12 | 鏈桿(HANDLE LEVER) | SUS 304 | 1 |
| 13 | 彈簧(SPRING ) | SUS 304 | 1 |
| 14 | 彈簧銷(SPRING PIN) | SUS 304 | 1 |
| 15 | 彈簧銷(SPRING PIN) | SUS 304 | 1 |
| 16 | 平華司(WASHER) | SUS 304 | 1 |
| 17 | 齒輪片(LOCKING PLATE) | SUS 304 | 1 |
| 18 | 齒輪座(GEAR SEAT) | PP+GF,UPVC,PVDF | 1 |
| 19 | 平華司(STEM WASHER 2"~5") | SUS 304 | 1 |
| 20 | 螺絲(BOLT) | SUS 304 | 3 |
| 21 | 塑料螺帽(NUT) | UPVC,PVDF | 1 |
| 22 | 埋入銅柱(INSERT NUT) | C3604 | 1 |
| 23 | 銘牌(LEVEL) | SUS 304 | 1 |
| 24 | 鉚釘(RIVET) | STAINLESS STEEL | 2 |
| SIZE NOM | 2" (50mm) | 2-1/2" (65mm) | 3" (80mm) | 4" (100mm) | 5" (125mm) | 6" (150mm) | 8" (200mm) | |
| JIS | ?D1 | 120 | 140 | 150 | 175 | 210 | 240 | 290 |
| n-?e | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | |
| ANSI | ?D1 | 121 | 140 | 152 | 191 | 216 | 241 | 298 |
| n-?e | 4-19 | 4-19 | 4-19 | 8-19 | 8-18 | 8-22 | 8-22 | |
| DIN | ?D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| n-?e | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 | 8-22 | |
| ?D | 165 | 185 | 200 | 229 | 257 | 285 | 343 | |
| ?D2 | 56.5 | 69.5 | 79.5 | 102.5 | 130 | 153 | 203 | |
| ?D3 | 105 | 120 | 123 | 135 | 164 | 169 | 201 | |
| L | 199 | 199 | 199 | 252 | 297 | 297 | 297 | |
| H | 248.5 | 267.5 | 277 | 316 | 373.5 | 402.5 | 464.5 | |
| H1 | 103 | 113 | 115 | 135.5 | 165 | 177 | 210 | |
| H2 | 82.5 | 92.5 | 100 | 114.5 | 128.5 | 142.5 | 171.5 | |
| H3 | 63 | 62 | 62 | 66 | 80 | 83 | 83 | |
| W1 | 43 | 46 | 46 | 56 | 69 | 70.5 | 87 | |
| W2 | 35 | 36 | 36 | 47 | 57 | 65 | 73 | |
| W3 | 94 | 94 | 94 | 100 | 110 | 100 | 81 | |
