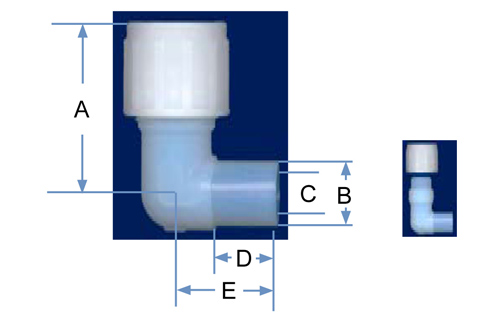

| PFA Part No. | Pipe Size | Tube Size | Orifice | A | B | C | D | E |
| WEC4P-4N-1 | 1/4 | 1/4 | .15 | 1.65 | .54 | .35 | .75 | 1.27 |
| WEC4P-6N-1 | 1/4 | 3/8 | .25 | 1.76 | .54 | .35 | .75 | 1.27 |
| WEC8P-4N-1 | 1/2 | 1/4 | .15 | 1.65 | .84 | .61 | .75 | 1.44 |
| WEC8P-6N-1 | 1/2 | 3/8 | .25 | 1.76 | .84 | .61 | .75 | 1.44 |
| WEC8P-8N-1 | 1/2 | 1/2 | .38 | 1.86 | .84 | .61 | .75 | 1.44 |
| WEC8P-12N-1 | 1/2 | 3/4 | .63 | 2.18 | .84 | .61 | .75 | 1.71 |
| WEC12P-8N-1 | 3/4 | 1/2 | .38 | 1.86 | 1.05 | .81 | .75 | 1.44 |
| WEC12P-12N-1 | 3/4 | 3/4 | .63 | 2.18 | 1.05 | .81 | .75 | 1.71 |
| WEC12P-16N-1 | 3/4 | 1 | .63 | 2.70 | 1.05 | .81 | .75 | 1.71 |
| WEC16P-12N-1 | 1 | 3/4 | .63 | 2.18 | 1.32 | 1.03 | .75 | 1.72 |
| WEC16P-16N-1 | 1 | 1 | .88 | 2.70 | 1.32 | 1.03 | .75 | 1.72 |
